Router Collector

Captures HTTP route matching data — matched route, pattern, arguments, match timing, and the full route tree.

What It Captures

Field	Description
currentRoute.name	Route name (if named)
currentRoute.pattern	Route URL pattern
currentRoute.arguments	Matched route parameters
currentRoute.host	Host constraint (if any)
currentRoute.uri	Actual matched URI
currentRoute.action	Controller/action handler
currentRoute.middlewares	Route-level middleware stack
currentRoute.matchTime	Time to match the route (seconds)
routes	Full route table
routesTree	Route tree structure

Data Schema

{
    "currentRoute": {
        "matchTime": 0.00012,
        "name": "user.show",
        "pattern": "/users/{id}",
        "arguments": {"id": "42"},
        "host": null,
        "uri": "/users/42",
        "action": "App\\Controller\\UserController::show",
        "middlewares": ["auth", "throttle"]
    },
    "routes": [...],
    "routesTree": [...],
    "routeTime": 0.00012
}

Summary (shown in debug entry list):

{
    "router": {
        "matchTime": 0.00012,
        "name": "user.show",
        "pattern": "/users/{id}"
    }
}

Contract

use AppDevPanel\Kernel\Collector\RouterCollector;

$collector->collectMatchedRoute([
    'name' => 'user.show',
    'pattern' => '/users/{id}',
    'arguments' => ['id' => '42'],
    'host' => null,
    'uri' => '/users/42',
    'action' => 'App\\Controller\\UserController::show',
    'middlewares' => ['auth', 'throttle'],
]);
$collector->collectMatchTime(matchTime: 0.00012);
$collector->collectRoutes(routes: $allRoutes, routesTree: $routeTree);

INFO

RouterCollectorAppDevPanel\Kernel\Collector\RouterCollectorCaptures HTTP routing data: matched route, match timing, route tree.final Kernel · class · implements SummaryCollectorInterface implements SummaryCollectorInterfaceAppDevPanel\Kernel\Collector\SummaryCollectorInterfaceSummary data collector responsibility is to collect summary data for a collector. Summary is used to display a list of previous requests and select one to display full info. Its data set is specific to the list and is reduced compared to full data collected in {@see CollectorInterface}.Kernel · interface · extends CollectorInterface. It has no dependencies on other collectors.

How It Works

Each framework adapter has a RouterDataExtractor that normalizes framework-specific route data into the common format:

• Symfony: Extracts from RouterInterface and request attributes
• Laravel: Extracts from RouterIlluminate\Routing\RouterLaravel Router. Registers routes and dispatches HTTP requests to controllers.Laravel · class facade and matched Route object
• Yii 3: Extracts from UrlMatcherInterfaceSymfony\Component\Routing\Matcher\UrlMatcherInterfaceSymfony Routing URL Matcher. Matches a URL path to a set of route parameters.Symfony · interface result

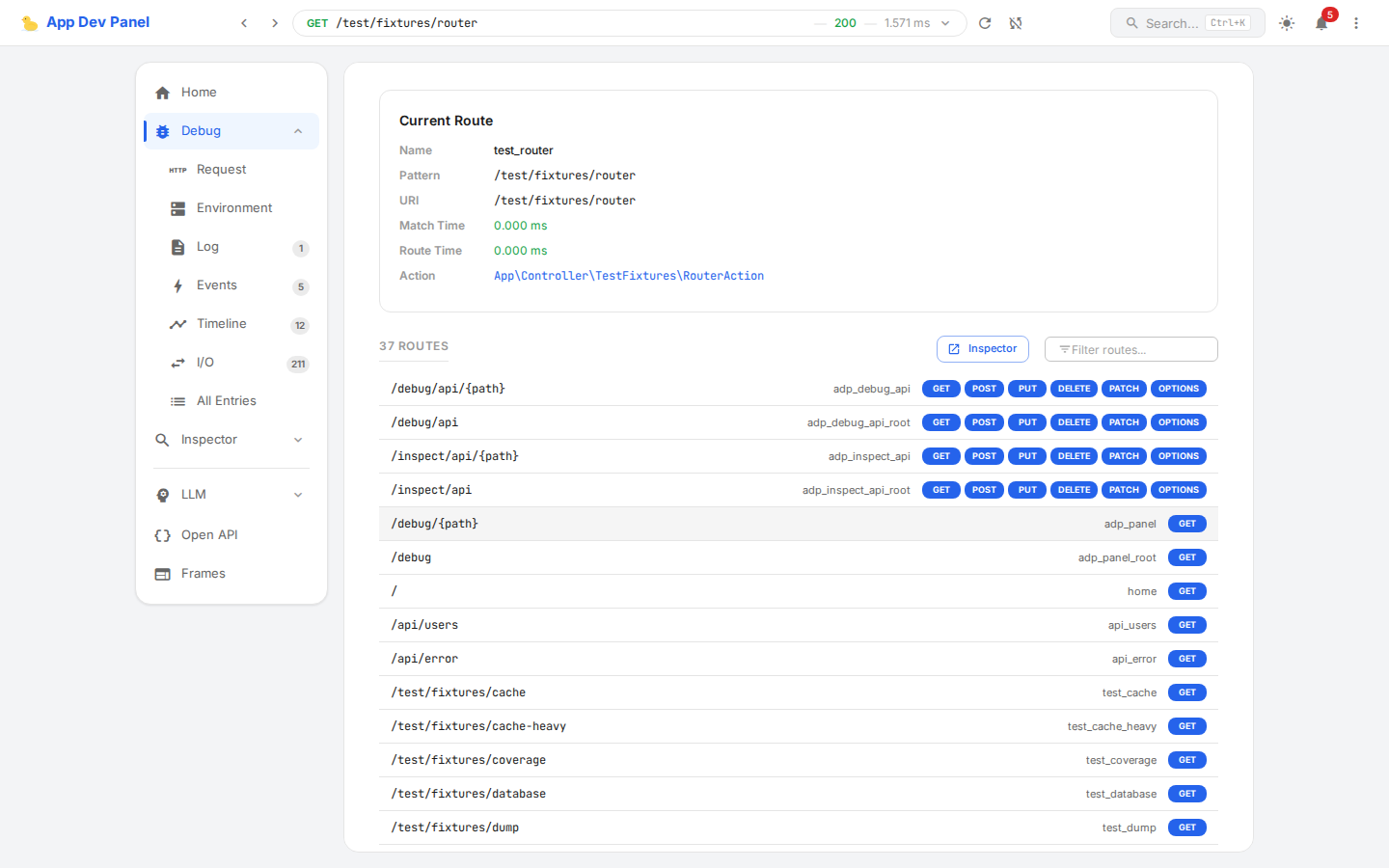

Debug Panel

• Matched route — current route pattern, name, and matched parameters
• Route arguments — key-value pairs of resolved parameters
• Action handler — controller class and method
• Match timing — how long route matching took
