HTTP Client Collector

Captures outgoing PSR-18 HTTP requests and responses with timing and status codes.

What It Captures

Field	Description
method	HTTP method (GET, POST, etc.)
uri	Request URI
headers	Request headers
line	Source file and line of the HTTP call
responseStatus	Response HTTP status code
responseRaw	Raw response body
totalTime	Total request/response time in seconds

Data Schema

[
    {
        "startTime": 1711878000.100,
        "endTime": 1711878000.350,
        "totalTime": 0.25,
        "method": "GET",
        "uri": "https://api.example.com/users/42",
        "headers": {"Authorization": "Bearer ***"},
        "line": "/app/src/ApiClient.php:55",
        "responseRaw": "{\"id\": 42, \"name\": \"John\"}",
        "responseStatus": 200
    }
]

Summary (shown in debug entry list):

{
    "http": {
        "count": 3,
        "totalTime": 0.75
    }
}

Contract

use AppDevPanel\Kernel\Collector\HttpClientCollector;

// Start collection
$collector->collect(
    request: $psrRequest,
    startTime: microtime(true),
    line: '/app/src/ApiClient.php:55',
    uniqueId: 'req-1',
);

// Complete with response
$collector->collectTotalTime(
    response: $psrResponse,
    endTime: microtime(true),
    uniqueId: 'req-1',
);

INFO

HttpClientCollectorAppDevPanel\Kernel\Collector\HttpClientCollectorCollects Http Client data during application lifecycle.final Kernel · class · implements SummaryCollectorInterface implements SummaryCollectorInterfaceAppDevPanel\Kernel\Collector\SummaryCollectorInterfaceSummary data collector responsibility is to collect summary data for a collector. Summary is used to display a list of previous requests and select one to display full info. Its data set is specific to the list and is reduced compared to full data collected in {@see CollectorInterface}.Kernel · interface · extends CollectorInterface and depends on TimelineCollectorAppDevPanel\Kernel\Collector\TimelineCollectorCollects Timeline data during application lifecycle.final Kernel · class · implements SummaryCollectorInterface.

How It Works

The collector is fed by HttpClientInterfaceProxyAppDevPanel\Kernel\Collector\HttpClientInterfaceProxyDecorator proxy for Http Client Interface. Intercepts calls and forwards data to collectors.final Kernel · class · implements ClientInterface — a PSR-18 ClientInterfacePsr\Http\Client\ClientInterfacePSR-18 HTTP Client Interface. Sends PSR-7 requests and returns PSR-7 responses.PSR-18 · interface decorator. Every $client->sendRequest($request) call is automatically intercepted, timed, and recorded.

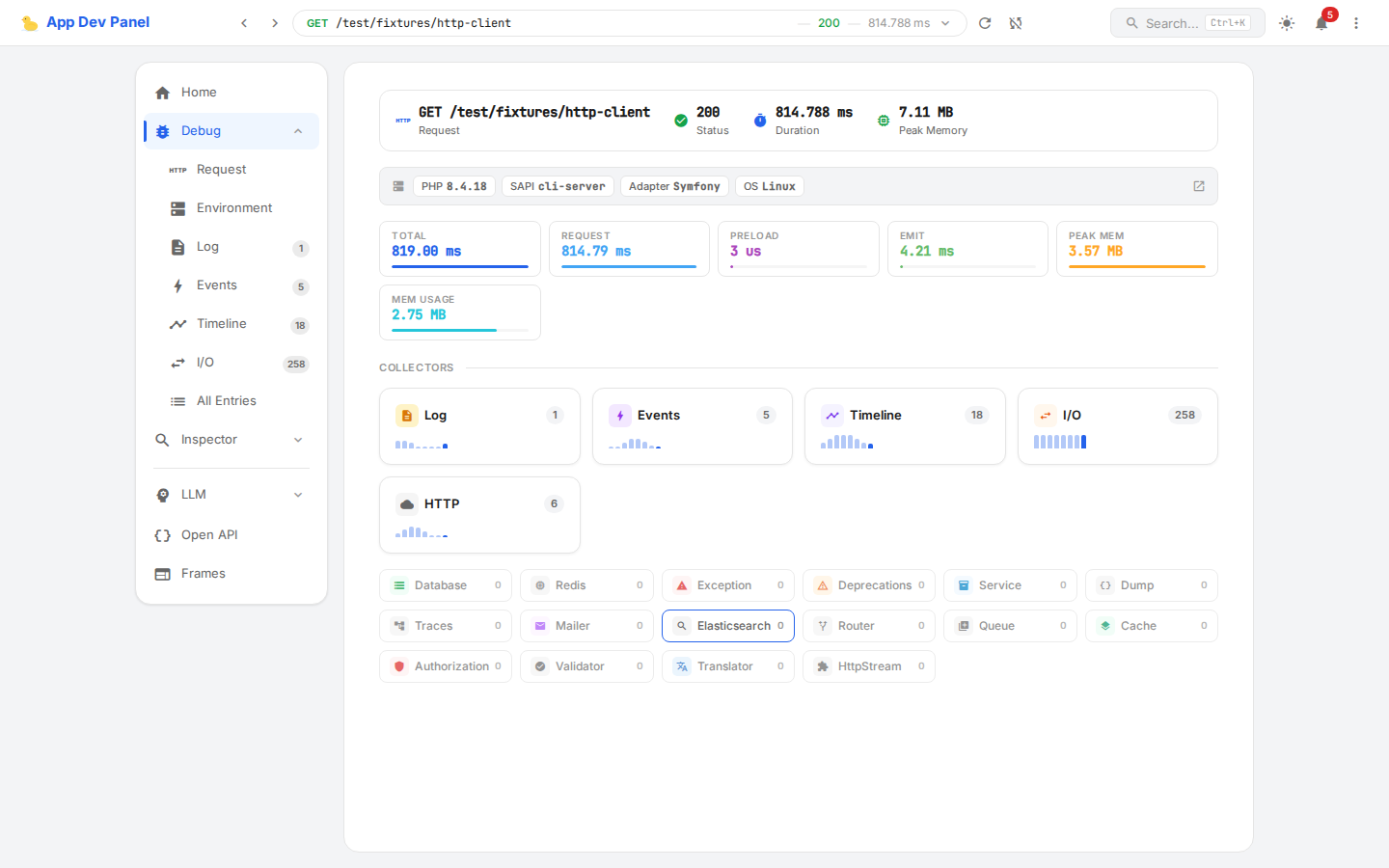

Debug Panel

• Request list — all outgoing HTTP calls with method, URL, status, and timing
• Request/response details — expandable view with headers and body
• Status badges — color-coded by response status (2xx green, 4xx orange, 5xx red)
• Timing breakdown — per-request duration
