Queue Collector

Captures message queue operations — dispatched messages, processing status, failures, and duplicate detection.

What It Captures

Field	Description
pushes	Messages pushed to queues, grouped by queue name
statuses	Message status updates (ID and status)
processingMessages	Messages currently being processed
messages	Dispatched/handled messages with metadata
messageCount	Total message count
failedCount	Number of failed messages

Data Schema

{
    "pushes": {
        "default": [...]
    },
    "statuses": [
        {"id": "msg-1", "status": "handled"}
    ],
    "processingMessages": {},
    "messages": [...],
    "messageCount": 3,
    "failedCount": 0,
    "duplicates": {
        "groups": [],
        "totalDuplicatedCount": 0
    }
}

Summary (shown in debug entry list):

{
    "queue": {
        "countPushes": 2,
        "countStatuses": 1,
        "countProcessingMessages": 0,
        "messageCount": 3,
        "failedCount": 0,
        "duplicateGroups": 0,
        "totalDuplicatedCount": 0
    }
}

Contract

use AppDevPanel\Kernel\Collector\QueueCollector;
use AppDevPanel\Kernel\Collector\MessageRecord;

// Log a dispatched/handled message
$collector->logMessage(new MessageRecord(
    class: 'App\\Message\\SendNotification',
    status: 'dispatched',
    queue: 'default',
    handlerClass: 'App\\Handler\\NotificationHandler',
));

// Or use individual methods
$collector->collectPush(queueName: 'default', message: $message);
$collector->collectStatus(id: 'msg-1', status: 'handled');

INFO

QueueCollectorAppDevPanel\Kernel\Collector\QueueCollectorCaptures message queue and message bus operations.final Kernel · class · implements SummaryCollectorInterface implements SummaryCollectorInterfaceAppDevPanel\Kernel\Collector\SummaryCollectorInterfaceSummary data collector responsibility is to collect summary data for a collector. Summary is used to display a list of previous requests and select one to display full info. Its data set is specific to the list and is reduced compared to full data collected in {@see CollectorInterface}.Kernel · interface · extends CollectorInterface, depends on TimelineCollectorAppDevPanel\Kernel\Collector\TimelineCollectorCollects Timeline data during application lifecycle.final Kernel · class · implements SummaryCollectorInterface, and uses DuplicateDetectionTraitAppDevPanel\Kernel\Collector\DuplicateDetectionTraitDetects duplicate items in collector data by grouping them by a key.Kernel · trait.

How It Works

Framework adapters intercept message bus/queue operations:

• Symfony: Messenger middleware and event listeners
• Laravel: Queue event listeners (JobProcessing, JobProcessed, JobFailed)
• Yii 3: Queue proxy decorator

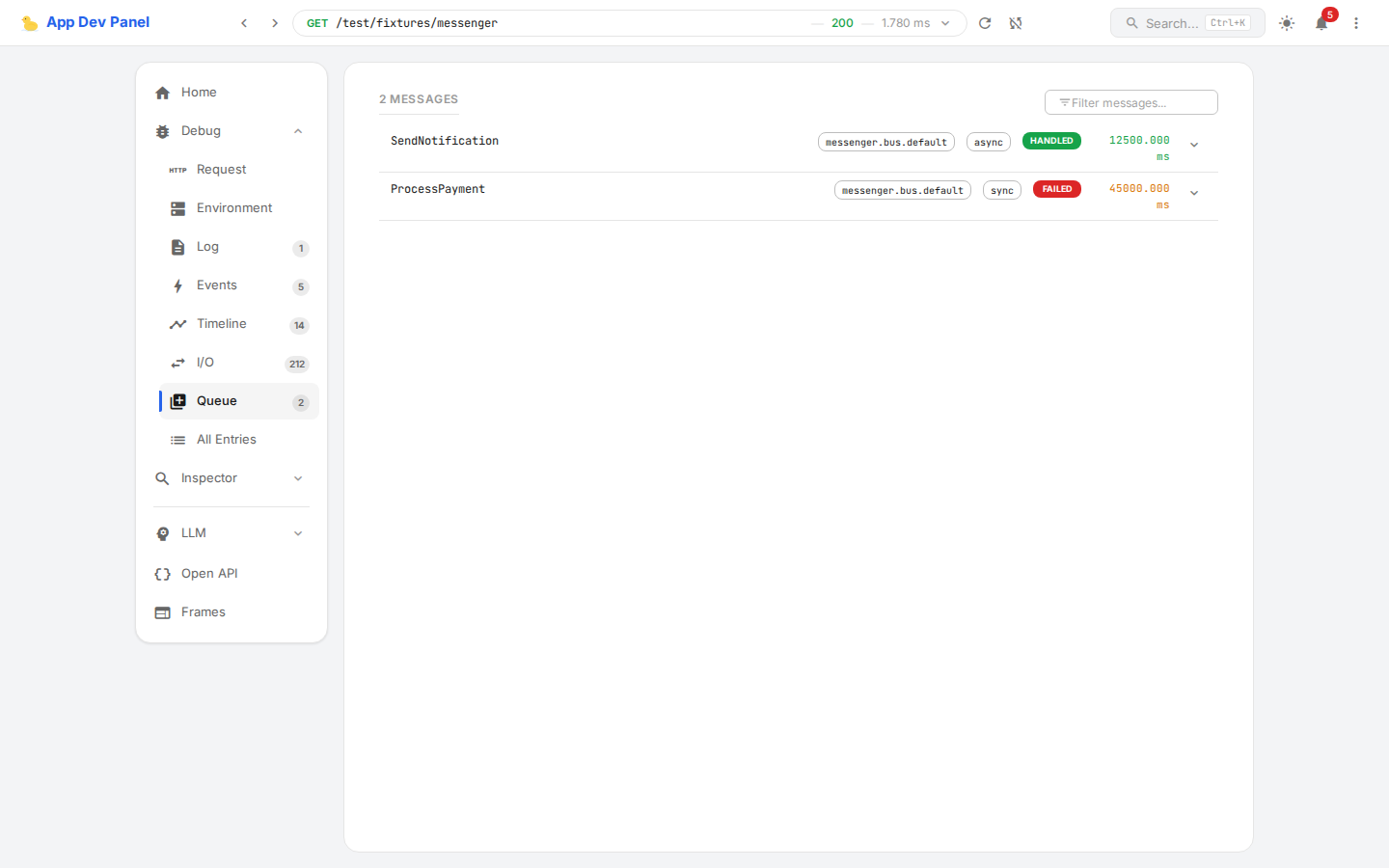

Debug Panel

• Message list — all dispatched and handled messages with status
• Queue grouping — messages grouped by queue name
• Status badges — dispatched (blue), handled (green), failed (red)
• Duplicate detection — highlights repeated identical messages
