Elasticsearch Collector

Captures Elasticsearch requests — method, endpoint, index, request/response body, timing, hits count, and duplicate detection.

What It Captures

Field	Description
method	HTTP method (GET, POST, PUT, DELETE)
endpoint	Elasticsearch endpoint path
index	Target index name
body	Request body (JSON)
status	Request status (success or error)
statusCode	HTTP response status code
responseBody	Response body
responseSize	Response size in bytes
hitsCount	Number of search hits (for search queries)
duration	Request duration in seconds

Data Schema

{
    "requests": [
        {
            "method": "GET",
            "endpoint": "/users/_search",
            "index": "users",
            "body": "{\"query\": {\"match\": {\"name\": \"John\"}}}",
            "line": "/app/src/SearchService.php:42",
            "status": "success",
            "startTime": 1711878000.100,
            "endTime": 1711878000.150,
            "duration": 0.05,
            "statusCode": 200,
            "responseBody": "{\"hits\": {\"total\": 5, ...}}",
            "responseSize": 1024,
            "hitsCount": 5,
            "exception": null
        }
    ],
    "duplicates": {
        "groups": [],
        "totalDuplicatedCount": 0
    }
}

Summary (shown in debug entry list):

{
    "elasticsearch": {
        "total": 3,
        "errors": 0,
        "totalTime": 0.15,
        "duplicateGroups": 0,
        "totalDuplicatedCount": 0
    }
}

Contract

use AppDevPanel\Kernel\Collector\ElasticsearchCollector;
use AppDevPanel\Kernel\Collector\ElasticsearchRequestRecord;

// Option A: start/end pattern
$collector->collectRequestStart(
    id: 'es-1',
    method: 'GET',
    endpoint: '/users/_search',
    body: '{"query": {"match": {"name": "John"}}}',
    line: '/app/src/SearchService.php:42',
);
$collector->collectRequestEnd(
    id: 'es-1',
    statusCode: 200,
    responseBody: '{"hits": {"total": 5}}',
    responseSize: 1024,
);

// Option B: single record
$collector->logRequest(new ElasticsearchRequestRecord(
    method: 'GET',
    endpoint: '/users/_search',
    index: 'users',
    body: '{"query": {"match": {"name": "John"}}}',
    duration: 0.05,
    statusCode: 200,
    hitsCount: 5,
    line: '/app/src/SearchService.php:42',
));

INFO

ElasticsearchCollectorAppDevPanel\Kernel\Collector\ElasticsearchCollectorCaptures Elasticsearch requests from the application.final Kernel · class · implements SummaryCollectorInterface implements SummaryCollectorInterfaceAppDevPanel\Kernel\Collector\SummaryCollectorInterfaceSummary data collector responsibility is to collect summary data for a collector. Summary is used to display a list of previous requests and select one to display full info. Its data set is specific to the list and is reduced compared to full data collected in {@see CollectorInterface}.Kernel · interface · extends CollectorInterface, depends on TimelineCollectorAppDevPanel\Kernel\Collector\TimelineCollectorCollects Timeline data during application lifecycle.final Kernel · class · implements SummaryCollectorInterface, and uses DuplicateDetectionTraitAppDevPanel\Kernel\Collector\DuplicateDetectionTraitDetects duplicate items in collector data by grouping them by a key.Kernel · trait.

See the dedicated Elasticsearch page for configuration and integration details.

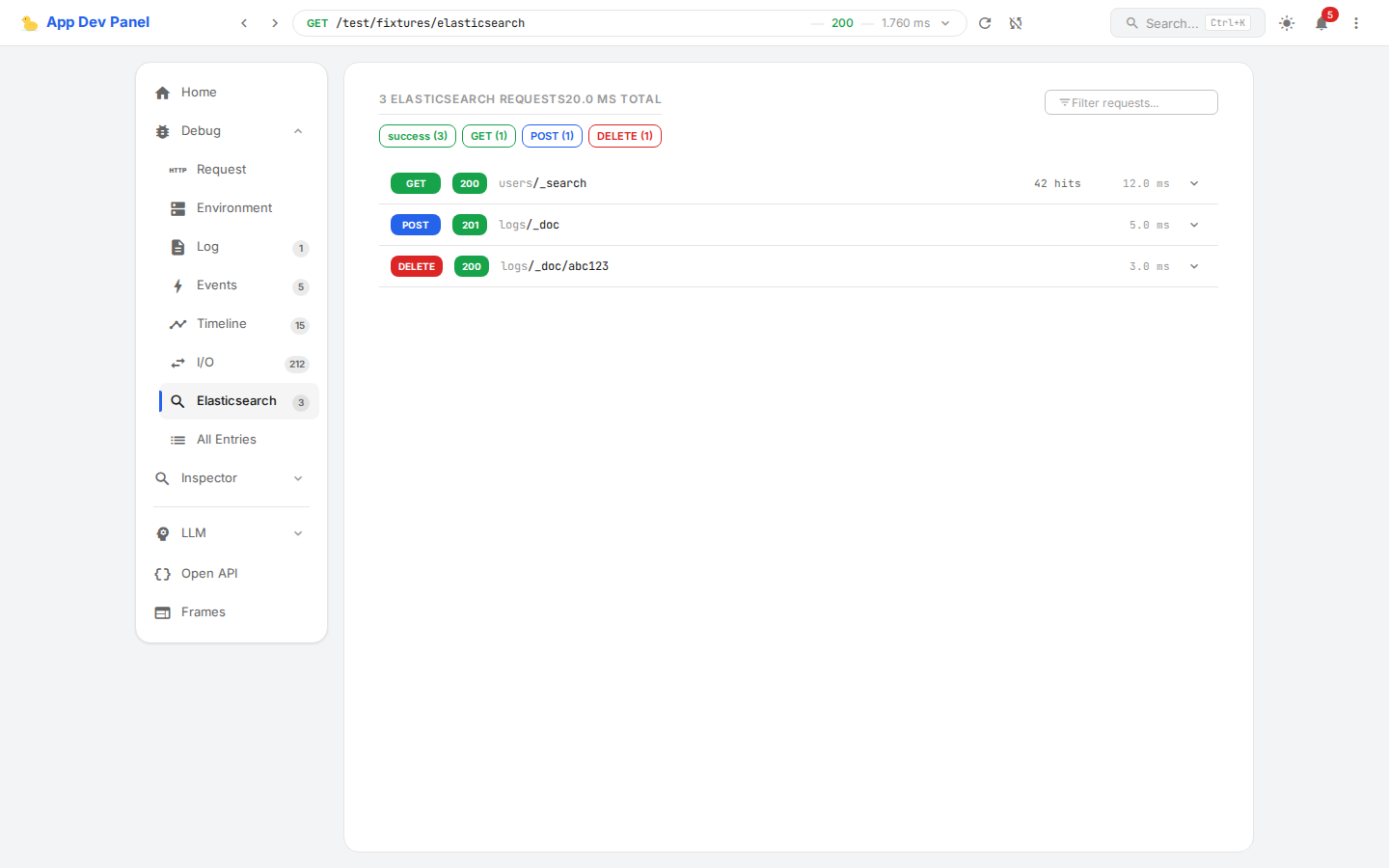

Debug Panel

• Request list — all ES requests with method, endpoint, status, and timing
• Hits count — number of search results for search queries
• Duplicate detection — highlights repeated identical requests
• Error tracking — failed requests highlighted with error details
